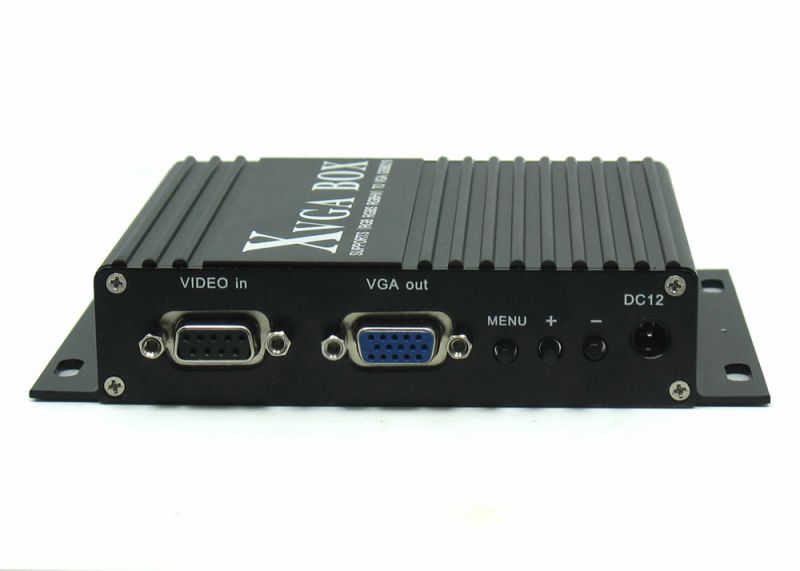

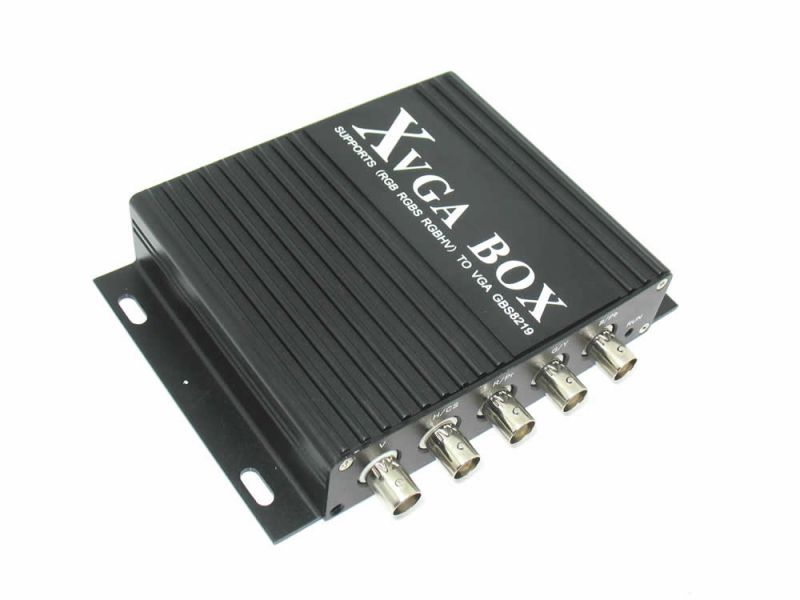

GBS-8219

FUNKCJE:

X VGA BOX (GBS-8219) może przekonwertować różne sygnały RGB (CGA, EGA, itd) na sygnał VGA, pozwala zewnętrznie sterować wyświetlaczami ciekłokrystalicznymi CRT, projektorami, telewizorami LCD i innym sprzętem.

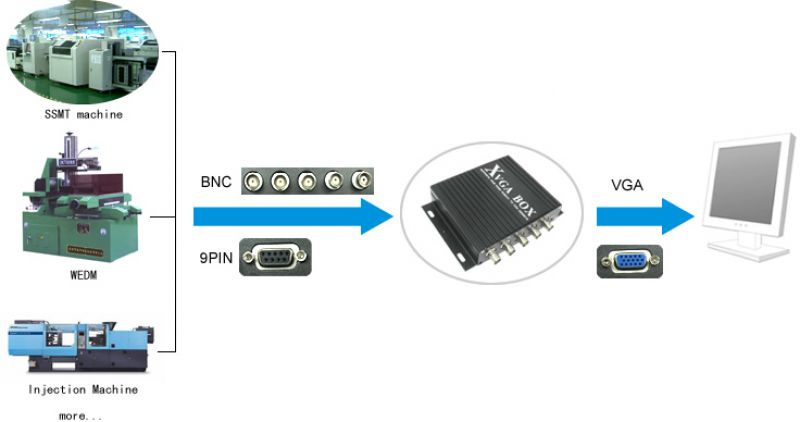

Z łatwością zastępuje  stare systemy wyświetlania, poprawa jakość obrazu co daje mu wiele możliwości przemysłowego zastosowania (obrabiarki CNC, wtryskarki, tokarki,  aparatura pomiarowa, sterowanie linii produkcyjnych, sprzęt medyczny, kolej, lotnictwo, instytucje finansowe, gry, kregielnie i inne urządzenia rozrywkowe etc.).

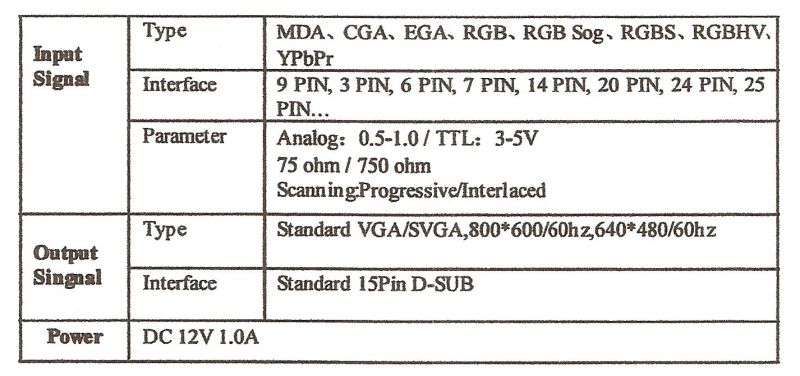

Parametry techniczne:

- zasilanie: 12 DC V zalecane powyżej 1A.

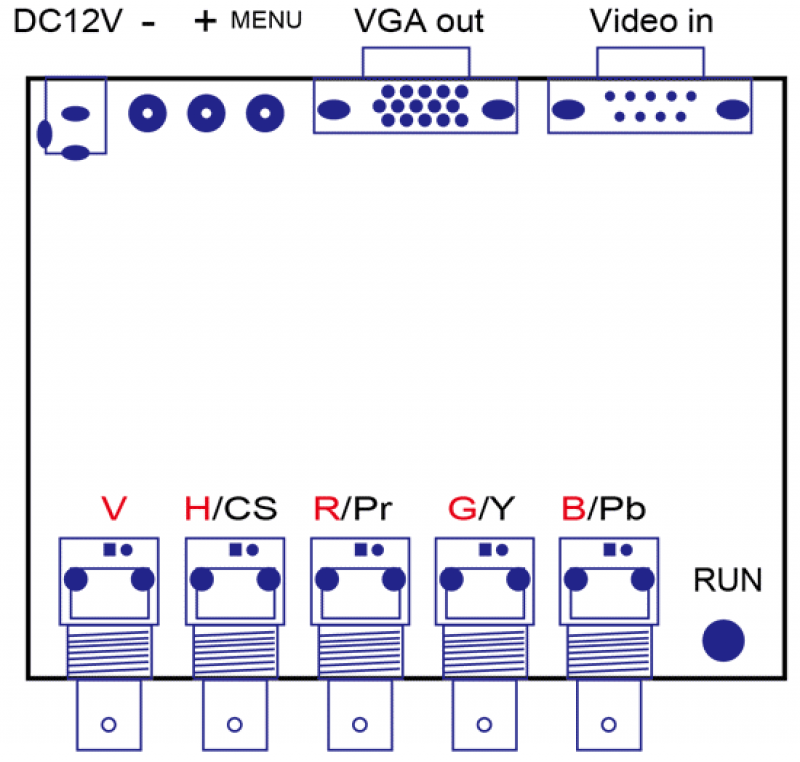

- sygnał video wejścia:  MDA, CGA, EGA, RGB, RGB Sog, RGBS, RGBHV, YUV, YPbPr etc. (częstotliwość odchylania poziomego H 12kHz - 40kHz )
- obsługuje sygnał: 480i, 576i, 720i, 1080i, 480p, 576p, 720p, 1080p, etc.
- maksymalny sygnał: 1,5 Vpp
- opór : 75Ω
- sygnał wyjściowy: VGA/SVGA, 800x600/60hz, 640x480/60hz -  interfejs 15Pin D-SUB

Rozmiar obudowy: 147mm x 100mm x 30mm

ZAMIENNIK DLA  MODELI:

MAZAK
26S-14O19L, 8DSP40, C-3240, C-3470, C-5470, CD1472-D1M, CDT-14148B, DR-5614, MDT1216, MDT1283, MDT962B, MDT925PS, ME-12PDB, TR120S9C, ME-12RDB

FANUC
A61L-0001-0072, A61L-0001-0073, A61L-0001-0074, A61L-0001-0074#A, A61L-0001-0076, A61L-0001-0077, A61L-0001-0078,, A61L-0001-0079, A61L-0001-0086, A61L-0001-0087, A61L-0001-0088, A61L-0001-0090, A61L-0001-0091, A61L-0001-0092, A61L-0001-0093, A61L-0001-0093#A, A61L-0001-0093#S, A61L-0001-0094, A61L-0001-0094#A, A61L-0001-0095, A61L-0001-0096

Simens
576736TA, 576744TA, 576745TA, 579417TA, 6FC3988-7AF01, 6FC4600-0AR04, 6FC4600-0AR10, 6FC4600-0AR50, 6FC5103-0AB01, 6FM2805-0AR04, 6FM2805-0AR50, QDM-9WD-110, QDM-9WD-120, QDM-9WD-121, SC1200, SM0901

Mitsubishi
C-3270LP, C-3470, C-3470J, C-5470NS, C-5470YE, CDT14111B, CDT14148B, MDT947, MDT947B, MDT947B-1A, MDT947B-2B, MDT962B-1A, MDT1283B, MDT1283B-1B

Hitachi
C14C-1472DF, C14C-1472D1F, C-5470YE, CD1472D1M, CD1472D1M-2, CDT14111B, CDT14111B-8A, TX1424AD, C14C-1472DFA, TX1425B, TX1450A, TX1450AE

Toshiba
D9CM-01A, D9MM-11A, D9MR-10A, D9MR-51B, D14CM-01A, D14CM-06A, D15CM-04A, D15CM-06A

GE
44A717111, 44A719977, 44A719978, 44A719979

Matsushita
KF-M7099H, TX-901AB, TX-1204, TX-1204AC, TX-1208AA, TX-1404, TX-1404AB, TX-1424, TX-1424AB, TX-1424AD, TX-1450A, TX-1450AB, TX-1450ABA, TX-1450AB5, TX-1450AE, TR-120S9C, TR-121A1B, TR-121A1C, TR-13DG1, TR-9DK1, TR-9DK1A, TR-9DK1B, TR-9DK1C, TR-9DKYC

Heidenhain
BC120, BC120B, BC110, BE110, BE135, BE211, BE211B

Tatung
CD14, CD14JBS, CD14JDS

Totoku
MDT925-PS, MDT947B-1A, MDT947B-2B, MDT1283-B, MDT1283B-1A, CDT14111-B, CDT14148-B, CDT14148B-8A, CDT14149B-1A

Magnetek
1051091000, 14531400100, 14531400102, 14531400107, 576736-TA, 576744-TA, 576745-TA, 576417-TA

YASKAWA MONITORS
C-5470YE, CDT14111B, CDT14111B-1A, CDT14148B, CDT14148B-8A, DBM-091, JZNC-OP57-1

SODICK
SODICK 14" CRT

STORK CDS
STORK CDS CDS 385 (CDS385) 12" Colour CRT, STORK CDS CDS 485 (CDS485) 12" Colour CRT, STORK CDS CDS 500 (CDS500_ 12" Colour CRT Monitor, STORK CDS CDS 85 (CDS85) 12" Colour CRT

TELEMECANIQUE
TELEMECANIQUE XBT MAGELIS 10" Colour CRT, TELEMECANIQUE XBT MAGELIS 14" Colour CRT

TOYODA
TOYODA GC 32 15" Colour CRT

OSAI
OSAI 10" Colour CRT, OSAI 10" Mono CRT, OSAI 14" Colour CRT, OSAI 9" Mono CRT

PHILIPS / GRUNDIG
CNC 3360 (CNC3360) 12" Mono CRT, CNC 3360 (CNC3360) 14" Colour CRT, CNC 3360 (CNC4360) 12" Mono CRT, CNC 3360 (CNC4360) 14" Colour CRT

REISHAUER
RG 10" Colour CRT, RG 10" Mono CRT, RGB 10" Colour CRT, RGB 10" Mono CRT, RZ 10" Colour CRT

SANDRETTO
S7 12" Mono CRT, S7 14" Colour CRT, S8 EL-Display CRT

SELCA
SELCA 14" Colour CRT

LVD
LVD Barco - MNC 95C 12" Colour - KME CRT

MAHO
300 14" Colour CRT, 600 14" Colour CRT, 700 14" Colour CRT, 900 14" Colour CRT, MAHO Philips 432 14" Colour CRT

MARPOSS
E50 10" Colour CRT, E50 10" Mono CRT, E50 12" Colour CRT, E50 12" Mono CRT, E50 14" Colour CRT, E9034 10" Colour CRT, E9034 10" Mono CRT, E9034 12" Colour CRT, E9034 12" Mono CRT, E9034 14" Colour CRT, E9066 10" Colour CRT, E9066 10" Mono CRT, E9066 12" Colour CRT, E9066 12" Mono CRT, E9066 14" Colour CRT

MORBIDELLI
ESA 10" Colour CRT, ESA 14" Colour CRT

NEGRI-BOSSI
All models 12" Colour CRT, All Models 12" Mono CRT, All models 14" Colour CRT, All Models 14" Mono CRT

NUM
1020 10" Colour CRT, 1020 14" Colour CRT, 1020 9" Mono CRT, 1040 10" Colour CRT, 1040 14" Colour CRT, 1040 9" Mono CRT, 1050 10" Colour CRT, 1050 14" Colour CRT, 1050 9" Mono CRT, 1060 10" Colour CRT, 1060 14" Colour CRT, 1060 9" Mono CRT, 720 10" Colour CRT, 720 14" Colour CRT, 720 9" Mono CRT, 750 10" Colour CRT, 750 14" Colour CRT, 750 9" Mono CRT, 760 10" Colour CRT, 760 14" Colour CRT, 760 9" Mono CRT

KRISTEL MONITORS
C72234, C72292

KRAUS-MAFFEI
MC2 12" Colour CRT, MC2 14" Colour CRT, MC3 12" Colour CRT, MC3 14" Colour CRT
